产品简述：

滨州晓星机械对XSQ60型手摇切边机进行了改进，加长横梁，使切割宽度增加到了1200mm；加大锯片护罩，增大了主电机功率，能够使用Φ400mm～Φ600mm锯片，切割160mm以下的板材、条石等；XSQ60型手摇切边机的工作台在原有油浸导轨的基础上与主机连为一体，使该机不需特定的基础来安装，只需选择一处较平坦的混凝土结构地面安放后稍加调整就可以使用。

主要特点：

滨州晓星机械对XSQ60型手摇切边机进行了改进，加长横梁，使切割宽度增加到了1200mm；增加升降电动机，实现了电动升降；加大锯片护罩，增大了主电机功率，能够使用Φ400mm～Φ600mm锯片，切割160mm以下的板材、条石等；增加不同直径的皮带轮，并且能够互换，以适应不同直径的锯片所需的转速；加长主轴，使该机具有了割线、划槽的功能；XSQ60型手摇切边机的工作台在原有油浸导轨的基础上与主机连为一体，使该机不需特定的基础来安装，只需选择一处较平坦的混凝土结构地面安放后稍加调整就可以使用，搬迁和安装更加方便。 The length of the beam, so that the cutting width increased to 1200mm; increase the lift motor, to achieve the electric lift;increase blade shroud, increases the power of the main motor, can use diameter 400mm to with 600mm saw blade, 160mm below the plate, stone cutting;an increase of different diameter belt wheel, and can be interchangeable, in order to adapt to the different diameter of the saw blade speed; lengthening spindle, so that the machine with the secant, slotting function;on the basis of the original oil guide with the host are connected as a whole, the machine does not need to be specific to install, only need to select a relatively flat concrete structure on the ground after placing a minor adjustment can be used, relocation and installation more convenient.

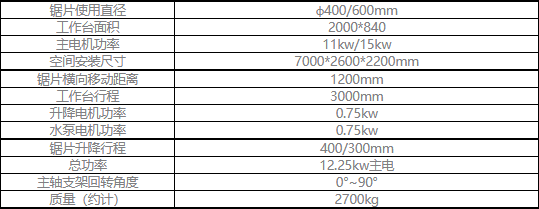

详细参数：
